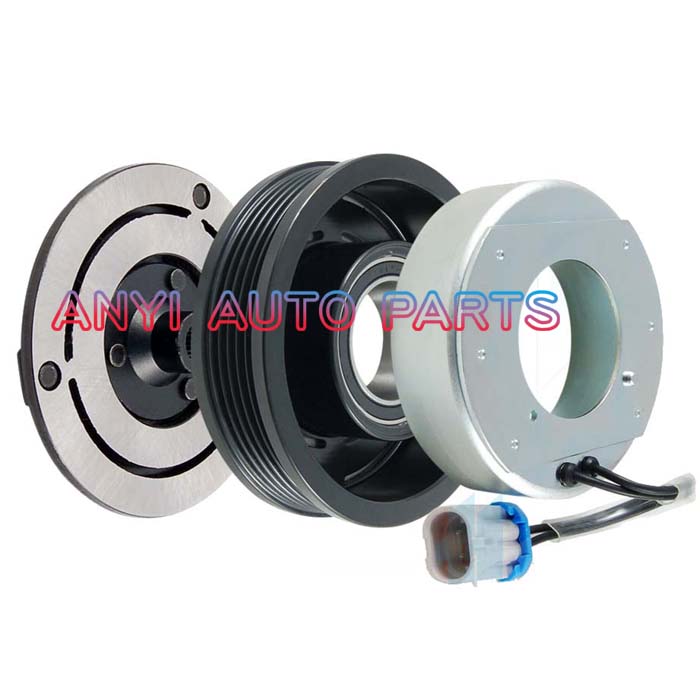

CA660 CLUTCH ASSEMBLY CVC 5pk for OPEL Astra G/H / Zafira B 8FK351134261 / 8FK351134761 / 8FK351316401 / 8FK351316901

Specifications

Model number: CA660

Coupling diameter (by belt): 104 mm

Coupling diameter (total): 109 mm

Bearing size: 35 x 50 x 20 mm

Number of streams (belt teeth): 5PK

Voltage: 12V

Seat height: 15.5mm

Shaft spline diameter: 12.6mm

Number of slots: 23

Inner diameter of the coil seat: 60 mm

Pressure plate diameter: 105 mm

Coil diameter: 92 mm

Coil Width: 27 mm

Coil# CC500

Hub# EK300

Application:

CVC Air conditioning compressor clutch Opel Astra G 1.6 / Astra H 1.6 / 1.8 / Zafira B

OEM no.

1618254

6854088

6854059

1618324

90543269

93180340

9132918

13124749

13124750

13139055

13322144

13322145

13322147

1580016

1580021

1580077

1854092

1854101

1854102

1854111

1854123

1854140

1854146

1854170

1854259

24427685

24432392

24464151

6854010

6854022

6854023

6854024

6854030

6854045

6854058

6854080

6854090

90559855

9166952

9167048

9174395

9174396

9196952

93168625

93168631

93169381

93176853

93176854

93176855

93176876

1854111 / 6854024 / 9165714 / 93176855 / 699270 / 699900 / 3700K316 / 945389 / 945489 / 851536N / 1139046 / 1854092 / 1854102 / 90559855 / 9174396 / 1854123 / 24432392 / 1854102 / 90559855 / 6854030 / 9174396 / 93176854 / 1854140 / 6854023 / 13124750 / 6854059 / 93176127 / 13124750 / 24466994 / 93187227 / 6854059 / 6854062 / 6854088 / 13124750 / 24466994 / 24466996 / 6854057 / 3139055 / 13189393 / 24466993 / 6854061 / 6854069 / 13286083 / 13297441 / 6854058 / 6854060 / 6854099 / 6854100 / 93190261 / 93190262 / 1139090 / 13124749 / 13139055 / R1580059 / R1580060 / 98965 / 6854062 / 1139068 / 24466994 / 6854062 / 6854059 / 6854062 / 6854088 / 13124750 / 1580053 / 93187227
