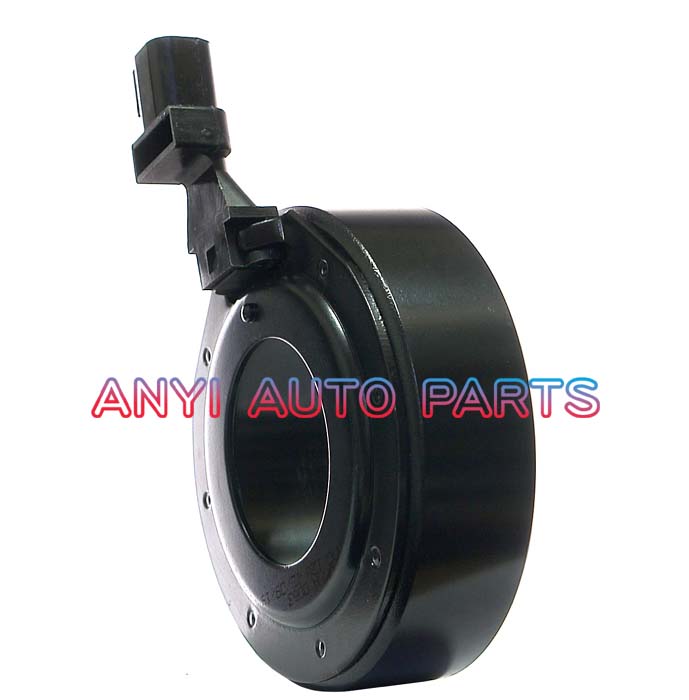

CA617 CLUTCH ASSEMBLY VS16 VS-16 6pk for Ford Mondeo/S-Max/Galaxy/Land Rover Freelander 1441291/6G9119D629GA / 6G9119D629GB

Specifications

Model number: CA617

Coupling diameter (by belt): 110 mm

Coupling diameter (total): 117 mm

Bearing size: 35 x 55 x 20 mm

Number of streams (belt teeth): 6PK

Voltage: 12V

Seat height: 19.5mm

Shaft spline diameter: 13.3mm

Number of slots: 21

Inner diameter of the coil seat: 63.5 mm

Pressure plate diameter: 115 mm

Coil diameter: 97 mm

Coil Width: 31.5mm

Type: VISTEON VS16 VS-16

Coil# CC213

Hub# EK322

Application:

Air conditioner clutch Ford Mondeo 4, S-Max, Galaxy 2006-present; Land Rover Freelander 2 2.2L Diesel

FORD:

Galaxy II (WM) 2006 - 2015

Mondeo IV (BD) 2007-2015

S-Max (WS) 2006 - 2014

LAND ROVER

Freelander 2 2.2L Diesel 2006-2014

Range Rover Evoque 2011-2018

FORD MONDEO IV / S-MAX / GALAXY 2.2 TDCi

LAND ROVER FREELANDER II 2.2 TD4

FORD GALAXY (WA6) 2.0 / S-MAX (WA6) 2.0

OEM no.

1633189

5M5H19D649BA

LR017930

6G91-19D629-DB

6G91-19D629-FD

6G91-19D629-FJ

6G91-19D629-AE

1745033

1433332

1434388

1435790

1435796

1441291

1459711

1543948

1543949

1543954

1543958

1566158

1566165

1566167

1566168

1674615

1674616

1674617

1674618

1718580

1731790

1741457

1746701

1747623

1766990

1766999

1767020

1767656

1787455

1791009

1791010

1791011

1791012

1799468

1858665

1858666

1858668

1858669

1890121

6G9119D629DB

6G9119D629DC

6G9119D629DD

6G9119D629DE

6G9119D629DF

6G9119D629DG

6G9119D629DH

6G9119D629EC

6G9119D629ED

6G9119D629EE

6G9119D629EF

6G9119D629EG

6G9119D629EH

6G9119D629EJ

6G9119D629FC

6G9119D629FD

6G9119D629FE

6G9119D629FF

6G9119D629FG

6G9119D629FH

6G9119D629FJ

6G9119D629FK

6G9119D629GB

6G9119D629GC

6G9119D629KA

6G9119D629KB

6G9119D629KC

6G9119D629KD

6G9119D629KE

6G9119D629KF

6G9119D629KG

AP3119D629AA

AP3119D629AB

AP3119D629AC

AP3119D629AD

AP3119D629AE

AP3119D629BA

AP3119D629BB

LR002649

LR009794

LR011983

LR019310

LR038627

LR041118

LR056301

31250547

31267513

36002899

31267515

813739

8FK351272-411 / 10-160-01044 / 1435790 / 1543948 / 1566158 / 1674615 / 1745033 / 240905 / 31250547 / 31267513 / 31291132 / 36000733 / 36002611 / 36002786 / 36002899 / 51-0462 / 57449 / 58449 / 5G91-19D629-DB / 6G91-19D629-DB / 6G91-19D629-DC / 6G91-19D629-DE / 8610602 / 8623338 / 8FK 351 334-071 / 8FK351334-071 / AC50282 / BGDPA / FDK415 / 6G91-19D629-DD / 1858665

6G91-19D629-FK / 10-160-01041 / 51-0584 / 6G91-19D629-FA / 6G91-19D629-FB / 6G91-19D629-FD / 6G91-19D629-FE / 6G91-19D629-FG / 6G91-19D629-FJ / 6G91-19D629-SG / 8FK 351 334-041 / 8FK351334-041 / AUK185 / LR002649 / LR007069 / LR041118 / 241320 / 6G91-19D629-FC / 1543954 / 1566167 / 1674617 / 1858668 / 1433332 / 1434388 / LR019310

1435796 / 1441291 / 6G9119D629GA / 6G9119D629GB / 6G9119D629GC / 1566168 / 1441291 / 1543958
