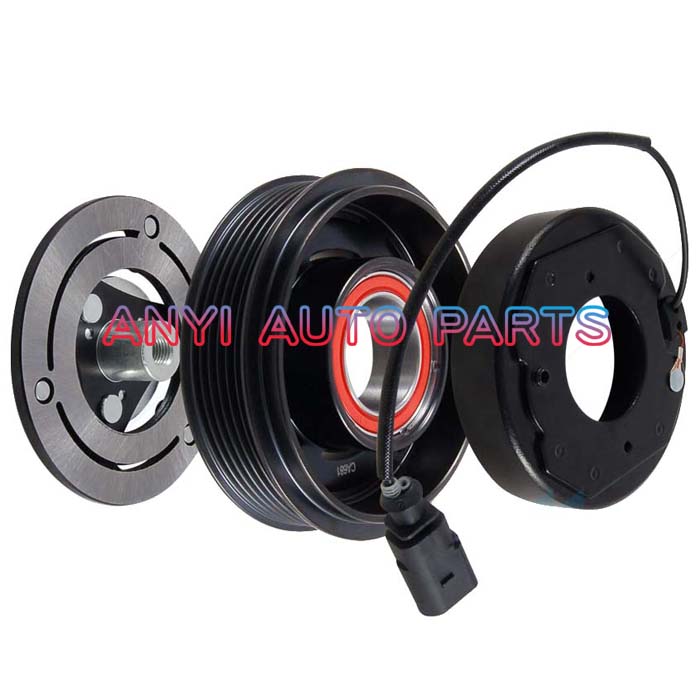

CA681 CLUTCH ASSEMBLY 6SBU14C/6SAS14C 6PK 12V for Audi A4/A5/Q5/A6/Q7 8T0260805F / 447160-5936 / 447280-7033

Specifications

Model number: CA681

Coupling diameter (by belt): 110 mm

Coupling diameter (total): 115 mm

Bearing size: 35 x 52 x 20mm

Number of streams (belt teeth): 6PK

Voltage: 12V

Seat height: 12 mm

Shaft spline diameter: 9 mm

Number of slots: Thread

Inner diameter of the coil seat: 61 mm

Pressure plate diameter: 99 mm

Coil diameter: 96 mm

Coil Width: 22 mm

Coil# CC542

Hub# EK367

Application:

6SBU14C / 6SAS14C Air conditioner clutch Audi A4, A5, Q5

AUDI A4 2.0 TDI B8 8K 2012

AUDI A5 2.0 TDI 8F 8T 2012

AUDI Q5 2.0 TDI 8R 2013

AUDI A6 3.0 TDI 8R 2013

AUDI Q7 3.0 TDI 8R 2013-

OEM no.

8K0260805N

8T0260805P

8T0260805F

8K0260810F

3WA820811

3WA820811A

4G0260810A

4G0260810B

8K0260810G

8K0260810H

3Q0816803

3Q0816803D

4G0260805M

4G0260805T

4G0816803E

5WA816803A

8K0260805Q

8T0260805S

8T0260805T

8T0816803F

8T0816803M

4M0260810C

4M0260810E

4M0816803L

4M0820803A

4M0820803J

4M0820803L

4471401543

4471401542

8K0260805Q / 8K0260805N / DCP02101

8T0260805F / 447160-5936 / 447280-7033
